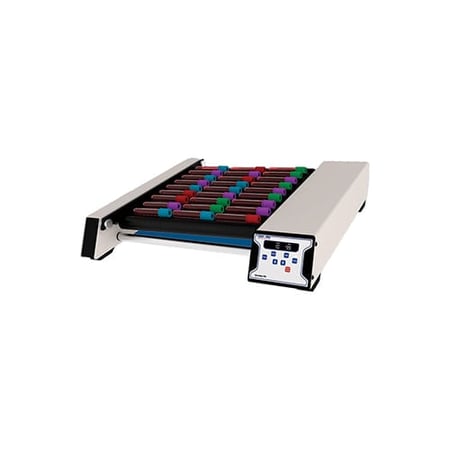

Oxford Lab Products Benchmate TR6 digital tube roller

Featuring an adjustable speed range from 10 to 80 rpm. Removable and autoclavable nylon rollers for quick and easy cleaning. Digital display (ideal for GLP). Save up to 9 programs with the handy user programmable feature. Pulse mode for more vigorous rolling and mixing needs. Can be used in incubators at temperatures up to 40?C and in cold rooms at temperatures as low as 5?C.

Sorry, no results were found.

Reset Filters
Product description Catalog # Quantity Price

TR6

$749.00

$524.30

Add Oxford Lab Products - TR6 to cart

Oxford Lab Products Benchmate TR6 digital tube roller Product Description

Featuring an adjustable speed range from 10 to 80 rpm. Removable and autoclavable nylon rollers for quick and easy cleaning. Digital display (ideal for GLP). Save up to 9 programs with the handy user programmable feature. Pulse mode for more vigorous rolling and mixing needs. Can be used in incubators at temperatures up to 40?C and in cold rooms at temperatures as low as 5?C.

Manual

tr6-tr10-user-manual

Oxford Tube Roller Comparison

TR4 Fixed Speed Tube Roller TR6 Digital Tube Roller TR10 Digital Tube Roller
Max Tube Capacity 9 x 5 mL Tubes 15 x 7 mL Tubes 27 x 7 mL Tubes
Speed Range 30 rpm 10 to 80 rpm 10 to 80 rpm
Speed Accuracy ± 2 rpm ± 5 rpm ± 5 rpm
Speed Steps NA 1 rpm 1 rpm
Tilt Angle ±3 ±3 ±3
Time Range Continuous 1 to 99 mins, or Continuous 1 to 99 mins, or Continuous
Digital display No Yes Yes
Removable Rollers Yes Yes Yes
Adjustable Roller Spacing (for variable tube sizes) Yes Yes Yes
Programmable Pulse Mode No Yes Yes
No. of Rollers 4 6 10
Rocking Motion Rolling and Rocking Rolling and Rocking Rolling and Rocking
Max. Loading Capacity 1.5 Kg 2 Kg 2 Kg
Protection Class IP 21 IP 21 IP 21
Weight 2 Kg 6 Kg 7.5 Kg
Motor type AC Synchronous Brushless DC motor Brushless DC motor
Permissible Ambient Temp. 5° C to 40 °C 5° C to 40 °C 5° C to 40 °C
Permissible Relative Moisture < 80% < 80% < 80%
Air Pressure 80 to 106 kPa 80 to 106 kPa 80 to 106 kPa
Dimensions 475 x 210 x 80 mm 496 x 107 x 292 mm 500 x 448 x 93 mm
Input Voltage 115 - 220 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz

BenchMate Digital Tube Roller Features and Benefits:

  • BenchMate TR6 Digital Tube Roller:
    • Speed setting from 10 to 80 rpm, and timer setting from 1 to 99 mins and infinite mode.
    • Adjustable roller spacing to hold different diameter tubes.
    • 6 rollers and has a tube capacity of up to 15 x 7 mL blood tubes.
    • Programming feature – User can save and run up to 9 user-defined programs (protocols).
    • Microprocessor controlled for accurate speed under variable loads.
    • Pulse mode for more vigorous mixing (alternating rotating direction). The user can set the pulse time from 30 to 99 seconds.
    • Stackable design with robust construction.
    •  3 Year Manufacturer Warranty
  • BenchMate TR10 Digital Tube Roller:
    • Speed setting from 10 to 80 rpm, and timer setting from 1 to 99 mins and infinite mode.
    • Adjustable roller spacing to hold different diameter tubes.
    • 10 rollers and has a tube capacity of up to 27 x 7 mL blood tubes.
    • Programming feature – User can save and run up to 9 user-defined programs (protocols).
    • Microprocessor controlled for accurate speed under variable loads.
    • Pulse mode for more vigorous mixing (alternating rotating direction). The user can set the pulse time from 30 to 99 seconds.
    • Stackable design with robust construction.
    • 5 Year Manufacturer Warranty
